Massey University Veterinary Teaching Hospital

Related Systems: Recover
Ultratherm Xtreme
Project Size: 4,500 m2
Location: Palmerston North
Project Date: 2020
Installer: SWP Commercial

Massey Vets is New Zealand’s only veterinary teaching hospital. Students work alongside staff, treating a range of animals from cats and dogs to horses and livestock.

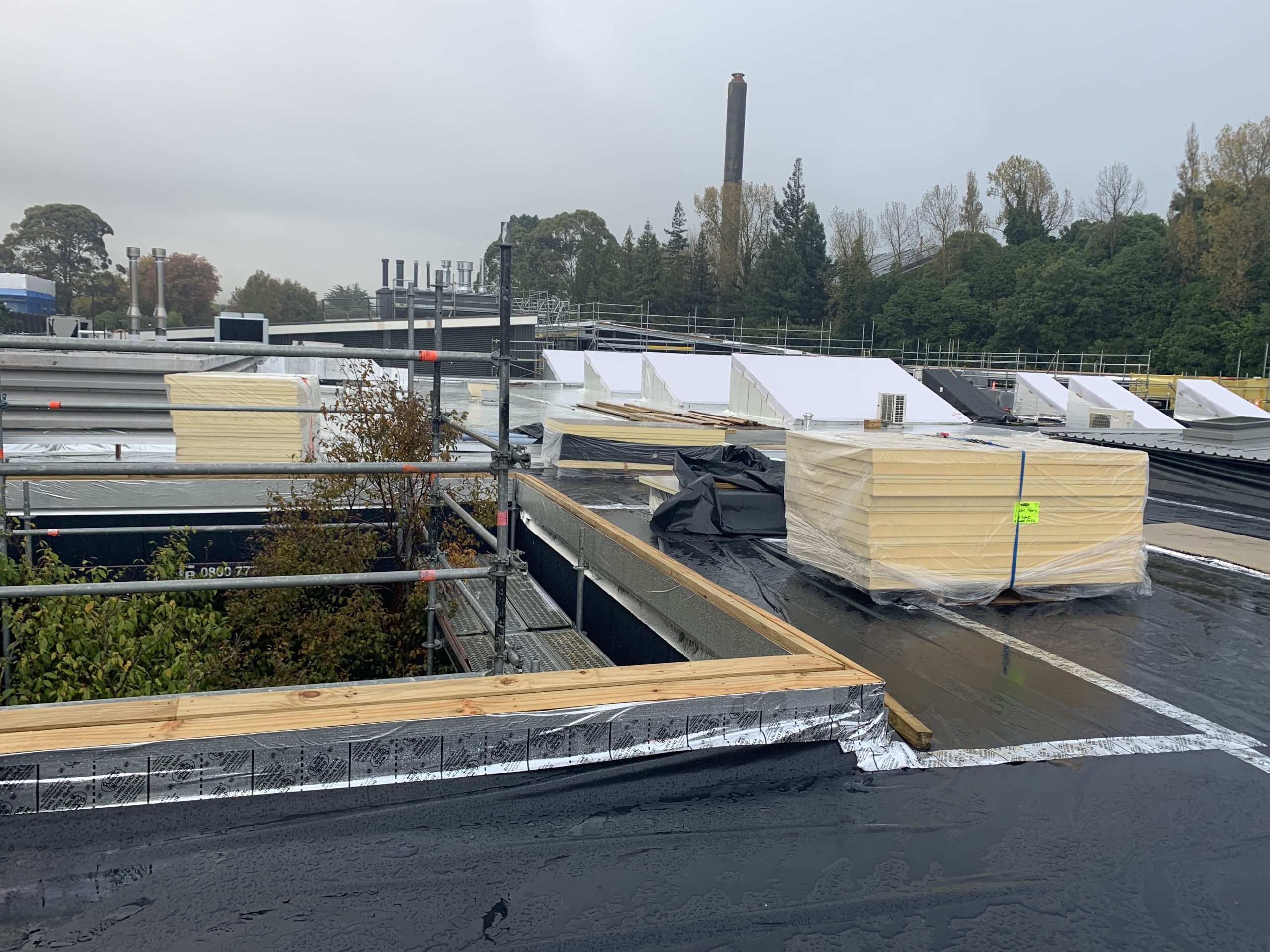

The existing roof, a nearly flat structure made of lightweight aluminum profiles, had persistent leakage issues. To address these problems, the roof was dismantled down to the sarking and replaced with a Recover Ultratherm Xtreme system featuring a FiberTite membrane overlay.

Since the original pitch was extremely low (between 0.3 and 0.5°), proper water drainage was achieved by incorporating RL Tapered PIR Board at 1°, eliminating the need for structural modifications.

System Details

UltraTherm Xtreme FiberTite Recover insulated roofing system over existing sarking

  • High Density polystyrene trough fillers
  • RL Vapour Control Barrier (VCL)
  • RL Tapered PIR Board (1°)

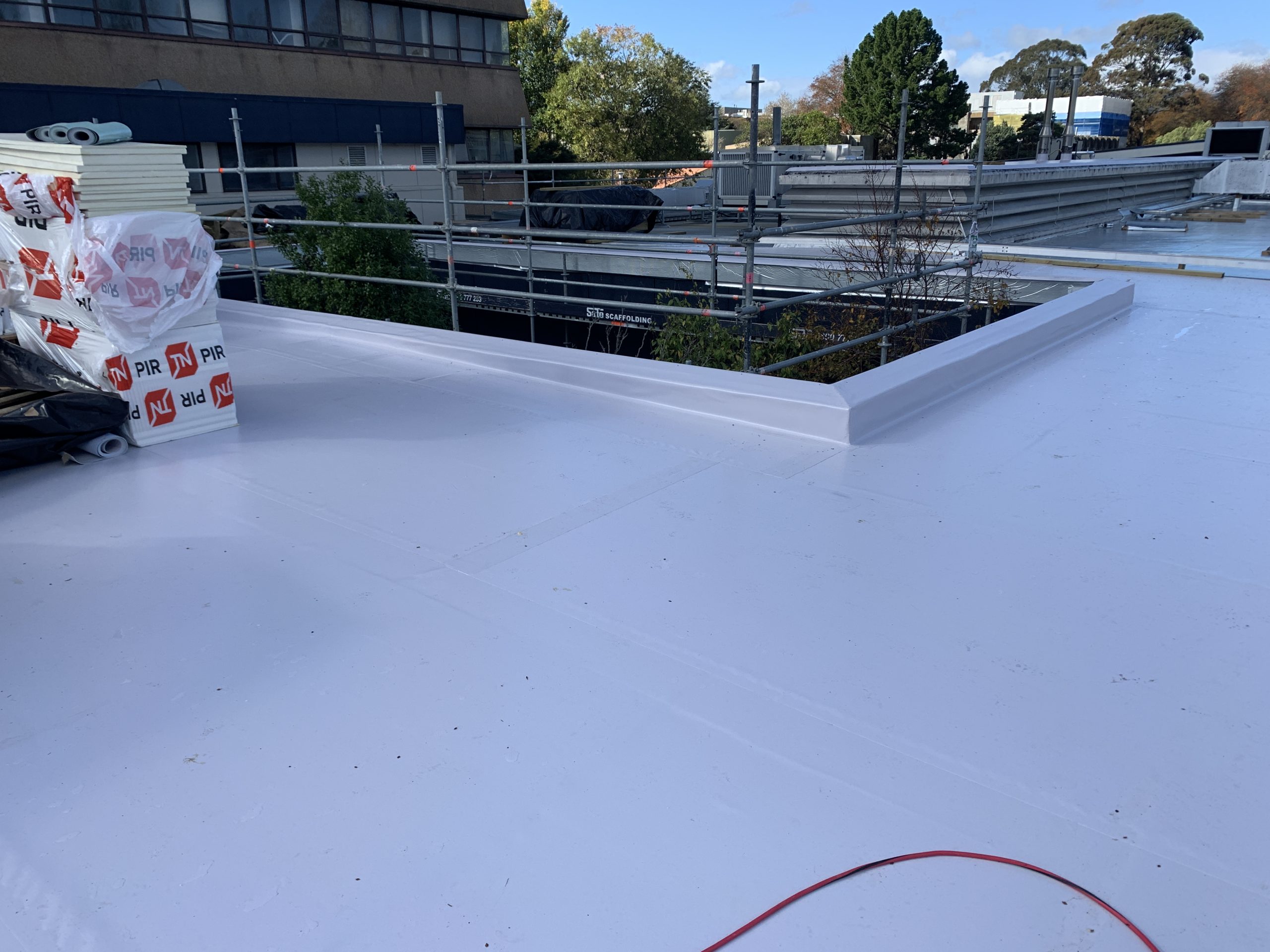

  • Fibertite Membrane
