Artificial Limb Service – Peke Waihanga

Related Systems: Recover
Ultratherm Xtreme
Project Size: 1,120 m2
Location: Wellington
Project Date: 2020
Main Contractor: Kensway
Installer: SWP Commercial

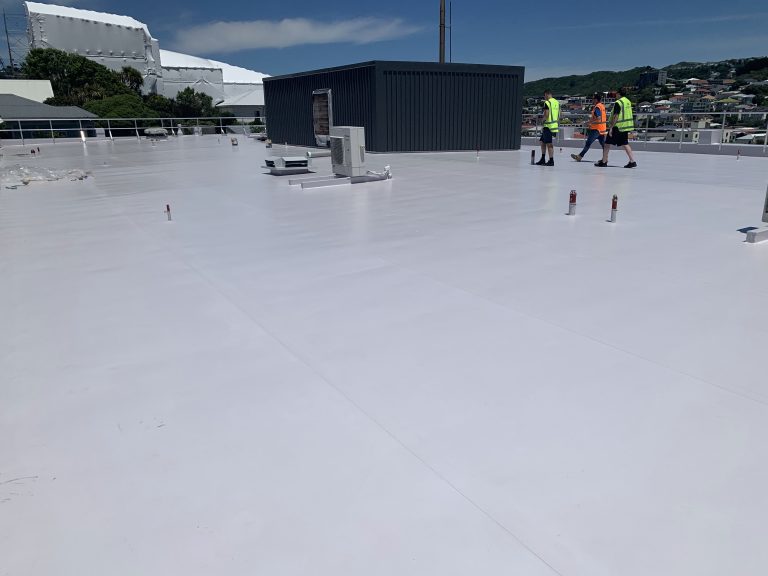

This critical healthcare facility faced persistent weathertightness issues with its low-pitch trough section metal roof and original membrane gutters. After years of ad-hoc repairs and ongoing leaks, the decision was made to install a fully engineered RoofLogic overlay system with a FiberTite membrane. RoofLogic designed and detailed the solution, providing all design calculations, a PS1 for the design, and a PS4 following detailed site observations. The result is a high-performance membrane roof overlay that delivers long-term reliability and operational security, even on low-pitch surfaces—putting an end to the cycle of chasing leaks.

System Details
  • RL Vapour Control Layer
  • High Density EPS Flute Fillers to match existing roof profile
  • RL Roof Board LW
  • FiberTite membrane
  • RL Fastflow Scupper outlets fabricated from Fiberclad Aluminium
